Foldable Heavy-Duty Offset Disc Harrow

Hydraulic folding heavy-duty disc harrow series with 3.0–4.5 m folding models for high field capacity and reduced transport width.

Request Quote

Product Video

Product Overview

This heavy-duty trailed offset disc harrow is designed for residue incorporation, breaking compacted soil, crushing clods and preparing seedbeds in demanding field conditions. Its welded rectangular-tube frame, hydraulic transport wheels and high penetration capacity make it suitable for heavy clay, wasteland and fields with dense crop residue.

Models with working widths from 3.0 to 4.5 metres are available with hydraulic folding wings. The folding structure reduces transport width while retaining high field capacity. Non-folding models from 1.6 to 3.0 metres are also available for buyers who do not require a folding transport configuration.

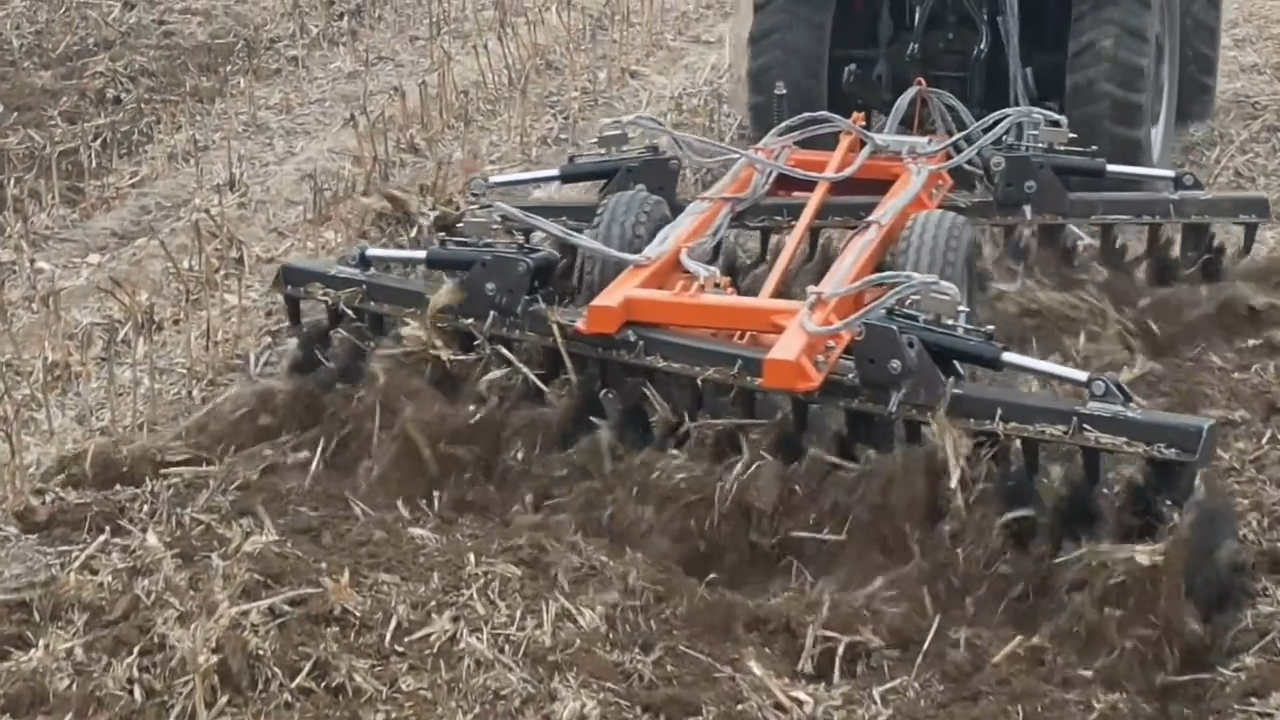

Hydraulic folding heavy duty disc harrow incorporating crop residue in the field — Heavy-duty residue incorporation in field operation

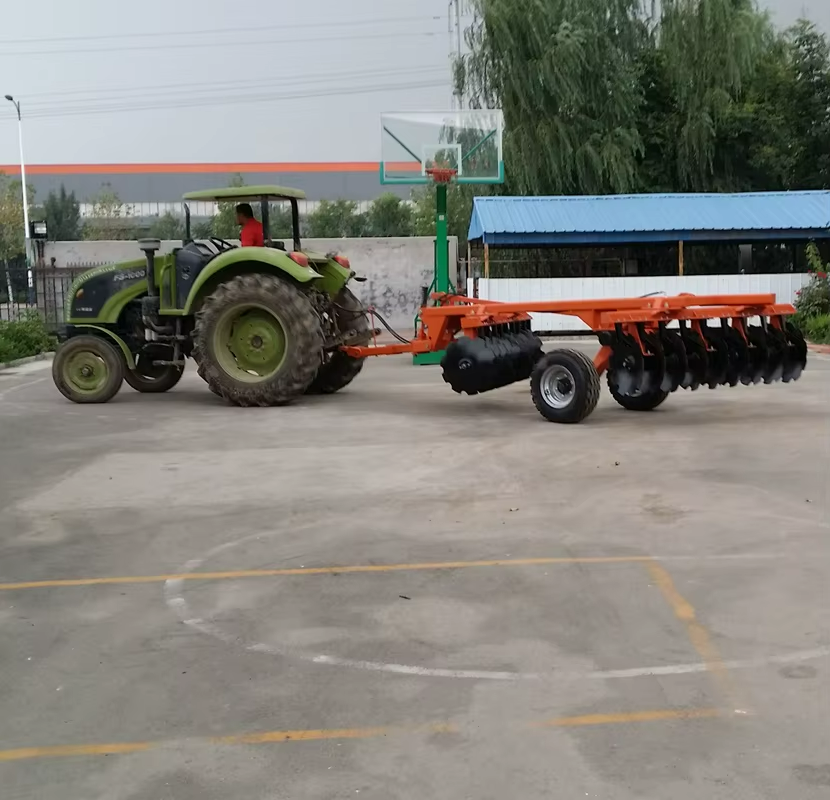

Hydraulic folding heavy duty disc harrow unfolded behind a tractor — Heavy-duty residue incorporation in field operation

Specifications

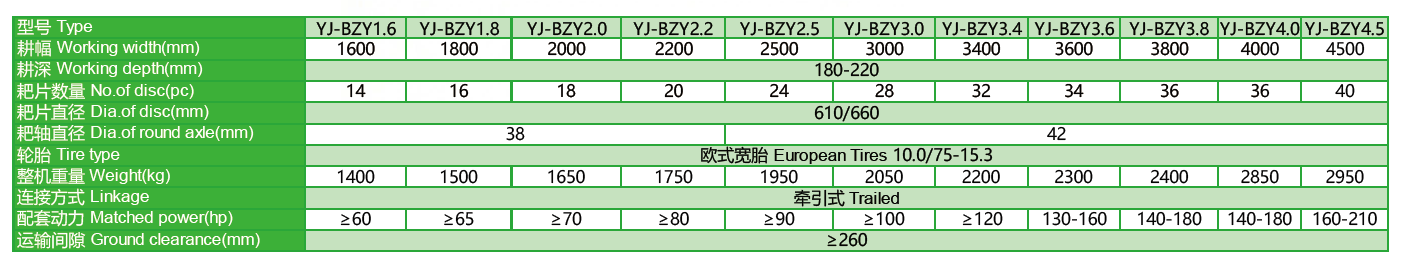

BZY hydraulic folding heavy duty disc harrow model specification table — BZY heavy duty disc harrow model specifications

OEM Non-Folding Option

For models with more than 32 discs, we can also manufacture a non-folding version on request. Please note that this configuration may exceed local road-transport width limits or other applicable transport standards.

Features

Hydraulic folding wings on 3.0–4.5 m models reduce transport width
Working widths from 1.6 to 4.5 m for different farm sizes
Heavy welded rectangular-tube frame for demanding field conditions
610 or 660 mm disc options for strong soil penetration
Hydraulic lift transport wheels with 10.0/75-15.3 tires
Trailed offset design for stable high-capacity operation
OEM colour, specification and branding options available

Applications

Crop residue incorporationBreaking compacted and hard soilClod crushing and seedbed preparationHeavy clay and weedy fieldsLarge-area primary and secondary tillageMoisture-conserving soil preparation
