Agricultural Machinery

Multifunction Power Tiller

Four compact 6-10 HP garden management machine models for trenching, tilling, ridging, hilling and multi-attachment crop production.

Request Quote

Multifunction power tiller with rotary tilling attachment

Product Video

Product Overview

One Power Unit, Multiple Field Operations

The 3TG-4Q series is a compact, walk-behind garden management machine for trenching, rotary tilling, ridging and hilling. With interchangeable attachments, it can also support bed forming, seeding, fertilizer application, film laying, reaping and other crop-management jobs.

It is designed for cash crops and row-crop operations such as scallions, ginger, potatoes and sugarcane, as well as orchards and vineyards where a full-size tractor has limited access.

Choose the Right Model

3TG-4QA

Premium differential-steering model with 3 forward and 1 reverse gear, smooth small-radius turning, reinforced trenching drive and dual-clutch control.

3TG-4QB

Dual-clutch model with reinforced chain and gear components, adjustable 180-degree handle and a two-speed reversible rotary-tilling unit.

3TG-4QC

Compact all-gear-drive model with 2 forward and 1 reverse gear, two rotary-tilling speeds and reversible operation.

3TG-4QD

Lightweight 90 kg single-wheel model designed for faster operation, stable slope climbing and powerful all-gear rotary-tiller output.

Field Applications

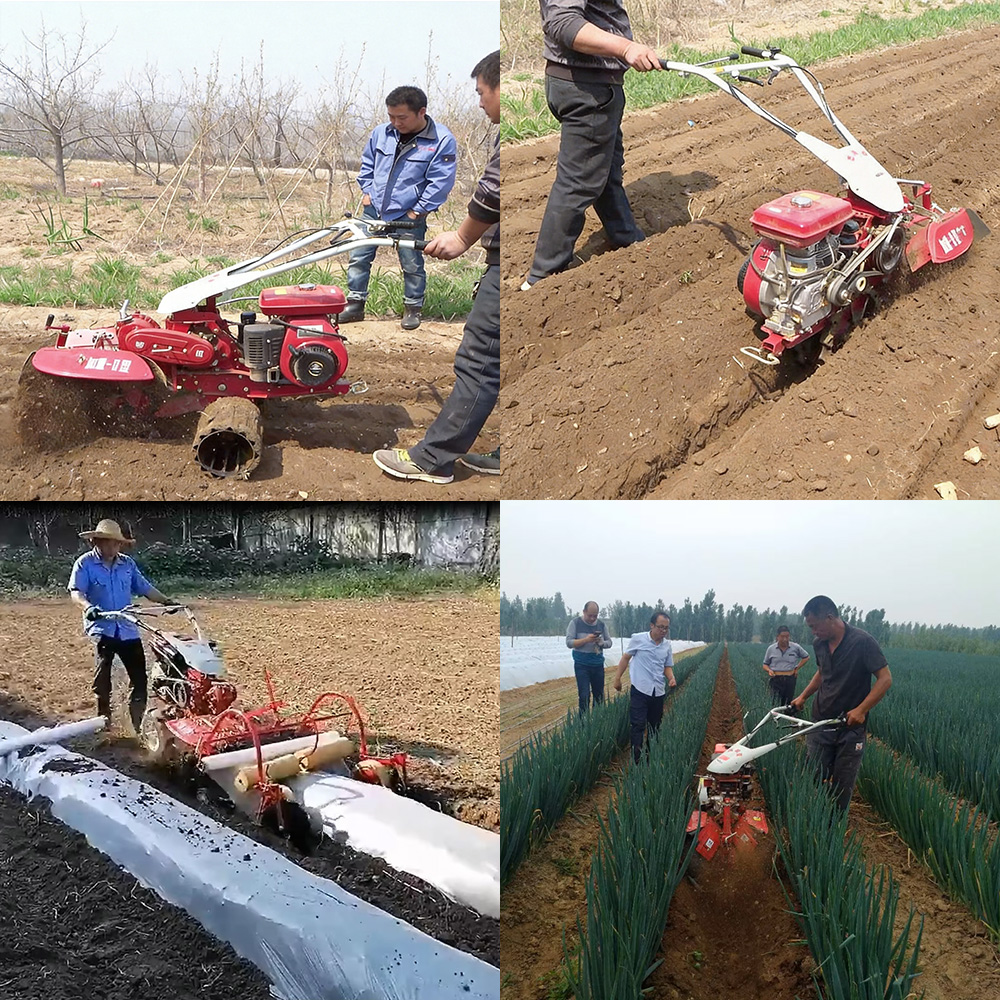

Garden management machine trenching, tilling, mulching and row-crop operations — Trenching, tilling, mulching and row-crop management.

Production Capacity

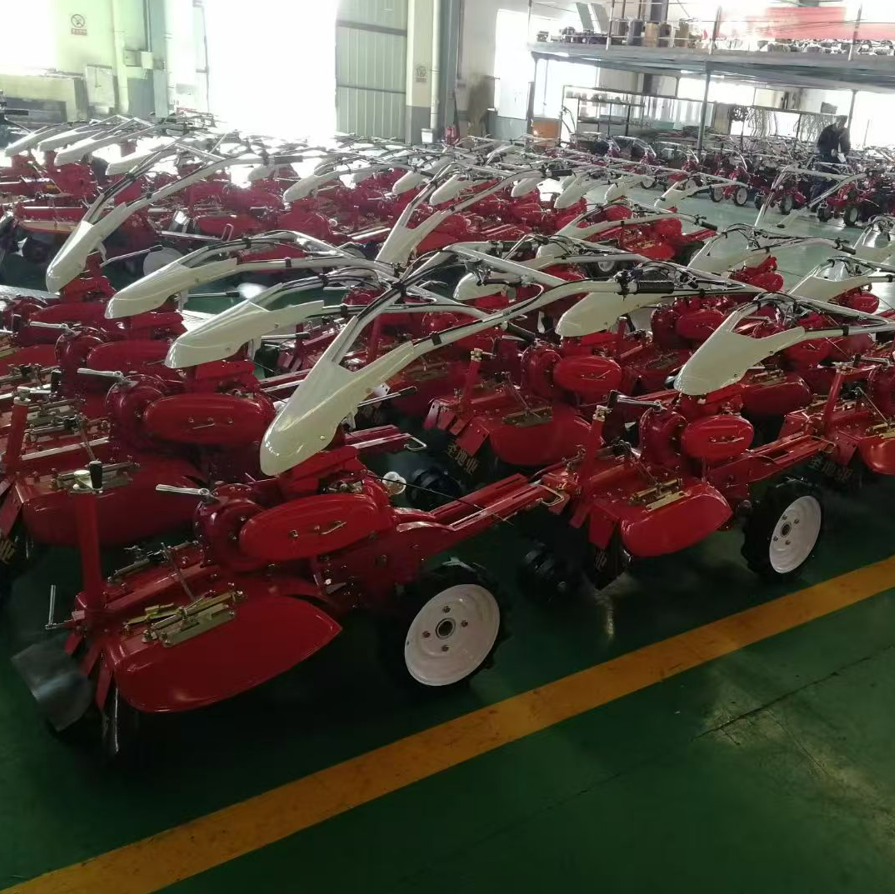

Garden management machines ready for inspection in the factory — Batch production and pre-delivery inspection.

Model Videos

3TG-4QA

3TG-4QB

3TG-4QC

3TG-4QD

Features

Four configurations for different budgets and operating requirements
6-10 HP petrol or diesel engine compatibility
Adjustable handle height with 180-degree rotation
Interchangeable attachments for trenching, tilling and ridging
Compact design for orchards, vineyards and narrow crop rows
Plywood-box export packaging

Applications

Ginger, potato, scallion and sugarcane productionOrchard and vineyard trenching and fertilizingRotary tilling and seedbed preparationRidging, hilling and bed formingMulching, spraying and irrigation supportSeeder, fertilizer drill and reaper attachments

Specifications

Model	3TG-4QA	3TG-4QB	3TG-4QC	3TG-4QD
Matching Power	6-10 HP petrol or diesel	6-10 HP petrol or diesel	6-10 HP petrol or diesel	6-10 HP petrol or diesel
Engine Rated Speed	1800 r/min	1800 r/min	1800 r/min	1800 r/min
Transmission	3F+1R or 2F+2R	3F+1R or 2F+2R	2F+1R	2F+1R
Wheels	2	2	2	1
Package Size (cm)	176×69×110	176×69×110	173×62×102	160×60×90
Machine Weight (kg)	126	126	110	90
Trenching Depth	≥30 cm	≥30 cm	≥25 cm	≥20 cm
Hilling Height	≥35 cm	≥35 cm	≥30 cm	≥40 cm
Working Width	120-640 mm	120-640 mm	100-640 mm	100-640 mm
Packaging	Plywood box	Plywood box	Plywood box	Plywood box
