Agricultural Machinery

4K-50 Mini Reaper Harvester | Cut, Bind & Harvest with One Machine

Compact two-row reaper harvester for cutting and automatically binding rice, wheat, barley, oats and sesame with 6-10 HP petrol or diesel power.

Request Quote

4K-50 mini reaper harvester with automatic crop binding system

Product Video

Product Overview

Cut and Bind in One Pass

The 4K-50 mini reaper harvester cuts standing crops and automatically forms tied bundles in a single operation. Its compact two-row design is suited to small and medium fields where larger harvesters have limited access.

A differential steering system supports tight turns and on-the-spot rotation. The machine is designed for clean, low-stubble cutting and can also handle fallen crops, helping operators improve harvesting efficiency while reducing manual gathering and binding work.

Crop Applications

Suitable for rice, wheat, barley, oats and sesame. The adjustable handlebar can rotate 180 degrees to support flexible operation under different field conditions.

Field Applications

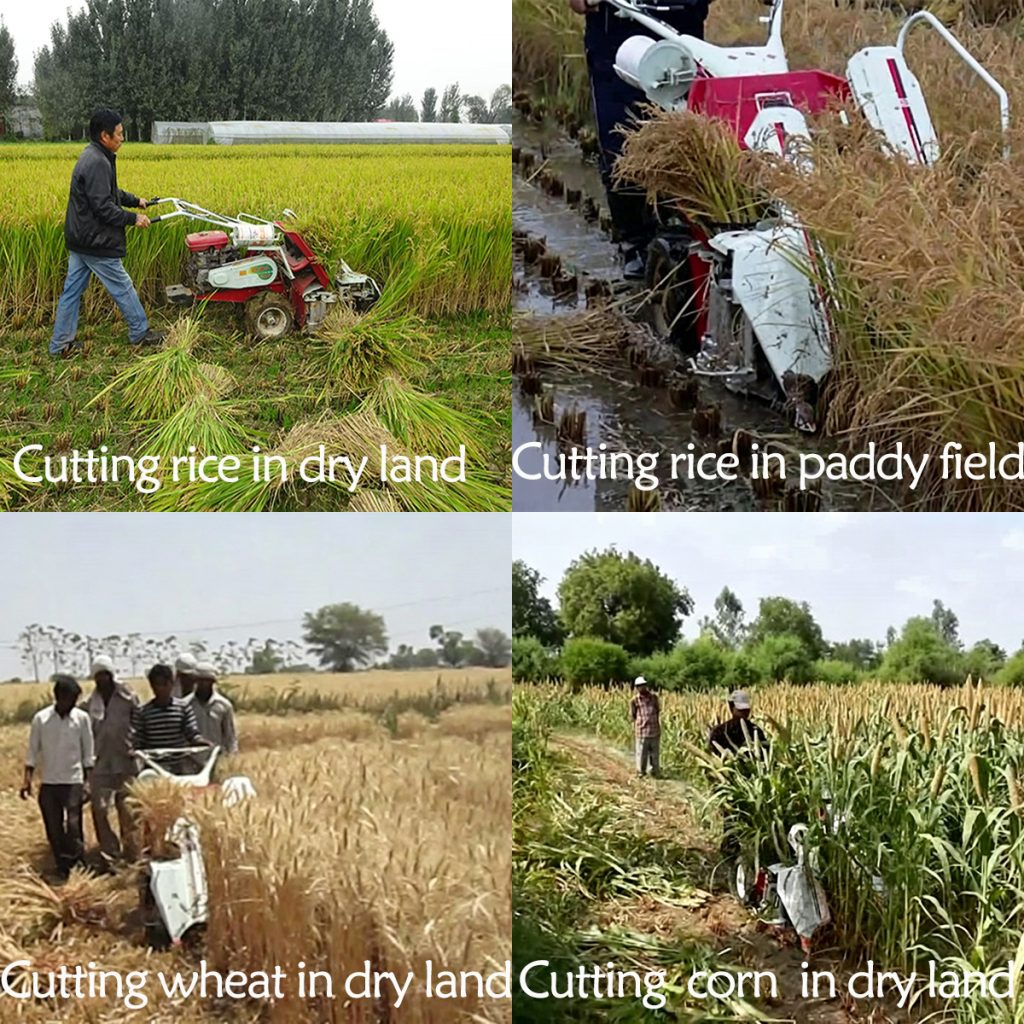

4K-50 mini reaper harvester working in different crop and field conditions — Compact harvesting across different crops and field conditions.

Compact Field Operation

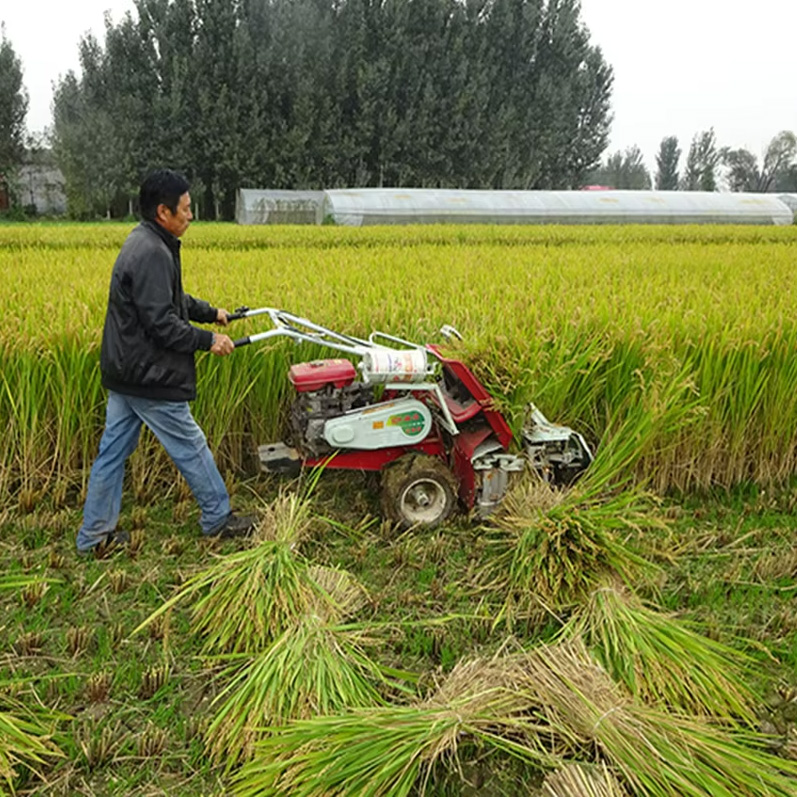

Operator using a compact reaper harvester to cut rice — Easy walk-behind operation in rice fields.

Features

Automatic cutting and binding in one operation
Two-row compact configuration for small and medium fields
Differential steering for tight turns and on-the-spot rotation
Clean cutting with low stubble and minimal missed crop
Capable of harvesting fallen crops
Height-adjustable handlebar with 180-degree rotation
6-10 HP petrol or diesel engine options

Applications

Rice harvesting in dry and paddy fieldsWheat harvestingBarley and oats harvestingSesame harvestingStanding and fallen crop conditionsSmall farms and narrow field access

Specifications

Specification	Value	Specification	Value
Model	4K-50	Machine Type	Mini Reaper Harvester
Number of Rows	2	Power	6-10 HP petrol or diesel
Working Width	500 mm	Row Distance	280-320 mm
Work Efficiency	700-2000 m²/h	Cutting Platform	Vertical
Bundle Method	Fully automatic	Bundle Diameter	9-13 cm adjustable
Stubble Height	≤80 mm	Total Loss Rate	0.5%-1.0%
Reliability	≥90%	Rope Type	Plastic / PP rope
Drive Type	Gear drive	Drive System	Belt and shaft driven
Dimensions (L×W×H)	2050×800×1050 mm	Weight	220 kg
Warranty	1 year	Certification	CE
Outgoing Inspection	Provided	Machinery Test Report	Provided
