Hydraulic Two-Way Disc Plough

Hydraulic reversible disc plough series with four models, three to six discs, 750–1500 mm working width and matching power from 60 to 160 HP. Designed for efficient bidirectional tillage in dry, terraced, stony and residue-heavy fields.

Request Quote

Product Video

Product Overview

Hydraulic Reversible Two-Way Disc Plough

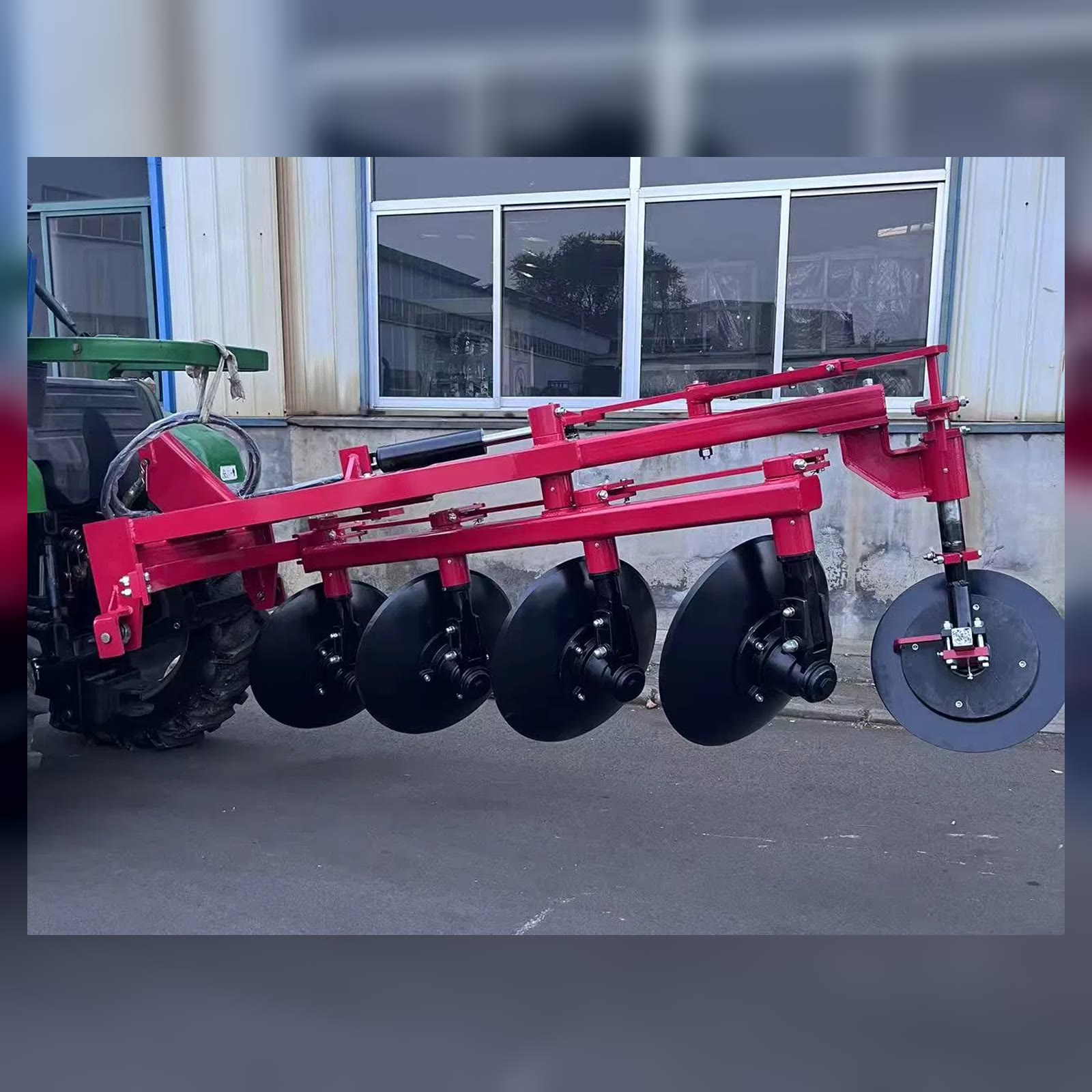

The 1LY(SX) hydraulic reversible disc plough series includes four models: 1LY(SX)-325, 1LY(SX)-425, 1LY(SX)-525 and 1LY(SX)-625. With three to six discs and working widths from 750 to 1500 mm, the range is designed for dry cultivated land, fallow fields, terraced farms and compact working areas.

Reliable Performance in Difficult Soil

Rolling disc blades cut through crop residue, weeds and compacted soil with less clogging than conventional mouldboard designs. Hardened 660/710 mm wear-resistant discs provide dependable penetration in clay, heavy loam, stony fields and newly reclaimed land.

Four Models for 60–160 HP Tractors

All four models provide a 250–300 mm working depth and Category II three-point linkage. Choose the appropriate configuration according to tractor power, required working width and field conditions. The hydraulic reversible structure reduces headland travel, turning time, fuel consumption and operator effort.

Product Gallery

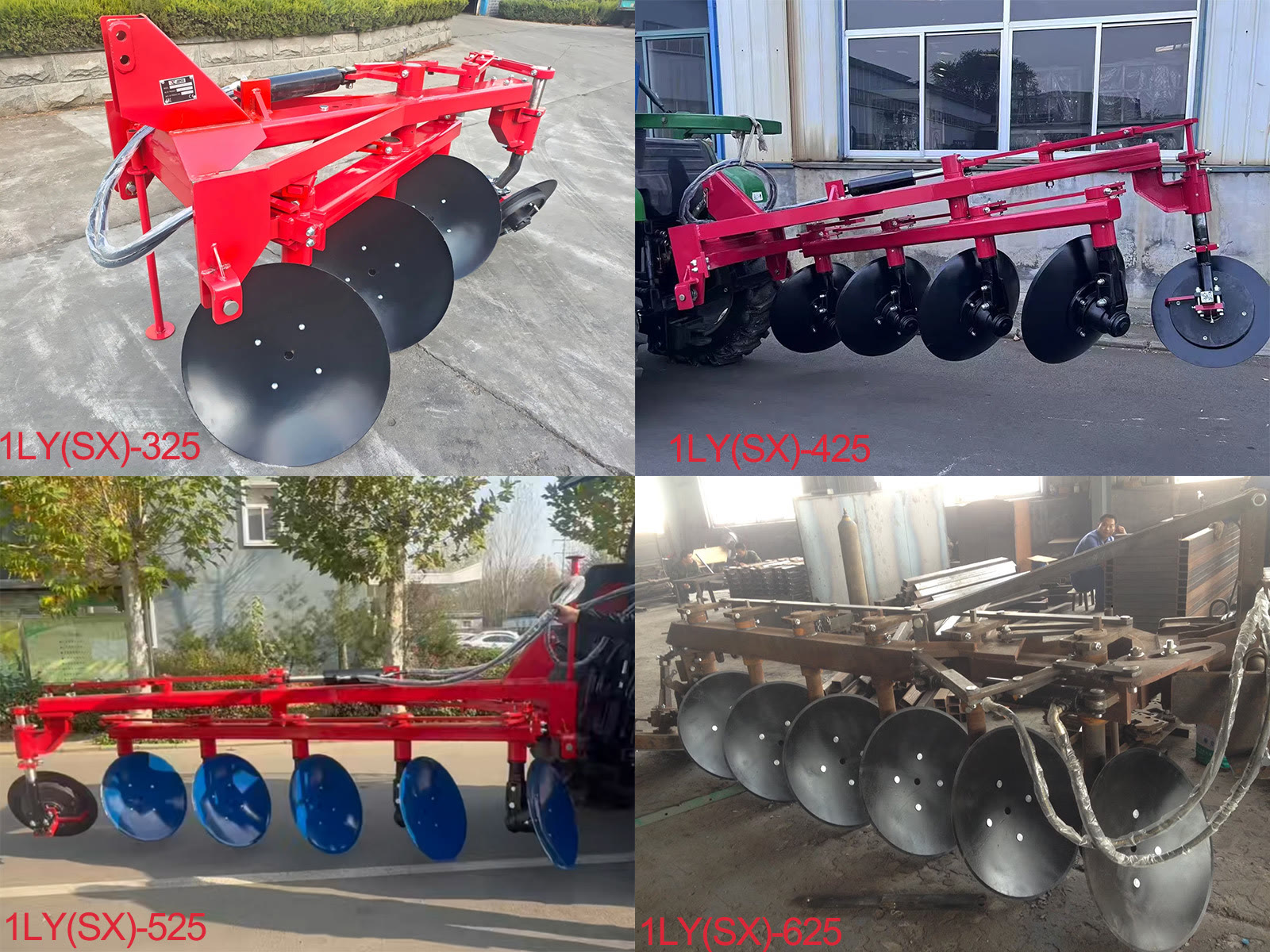

1LY(SX) reversible disc plough model range from three to six discs

Features

Hydraulic reversible structure for bidirectional ploughing
Four models: 1LY(SX)-325, 425, 525 and 625
Working widths from 750 to 1500 mm
Three to six heavy-duty disc configurations
250–300 mm stable working depth
660/710 mm hardened wear-resistant disc blades
Matched with 60–160 HP tractors
Category II three-point linkage for easy tractor connection

Applications

Dry cultivated land and fallow fieldsTerraced fields and small farming areasClay, heavy loam and stony soilFields with crop residue, weeds or stubbleNewly reclaimed and compacted landDeep ploughing before planting and crop rotation

Specifications

Specification	1LY(SX)-325	1LY(SX)-425	1LY(SX)-525	1LY(SX)-625
Working width	750 mm	1000 mm	1250 mm	1500 mm
Working depth	250–300 mm	250–300 mm	250–300 mm	250–300 mm
Number of discs	3	4	5	6
Disc diameter	660/710 mm	660/710 mm	660/710 mm	660/710 mm
Weight	660 kg	750 kg	900 kg	1000 kg
Linkage	Category II three-point mounted	Category II three-point mounted	Category II three-point mounted	Category II three-point mounted
Matched tractor power	60–80 HP	80–100 HP	100–120 HP	120–160 HP
